Non Ferrous AMS Ceramic Shot Peening Media Z850 Z600 Z425 For Engines And Wheel Hub

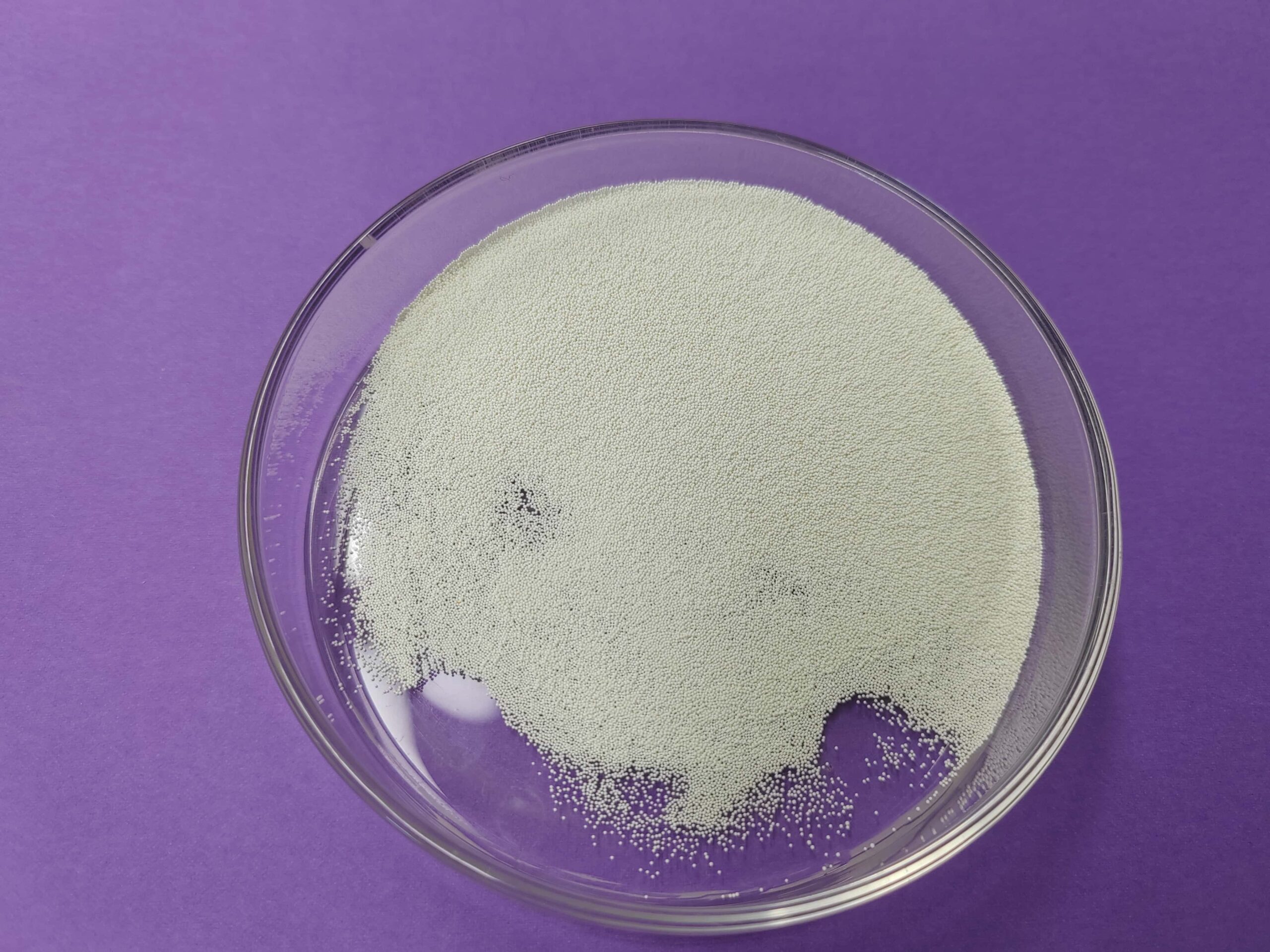

Product of Description of Ceramic Beads
Ceramic shot peening is one ideal shot peening material, it has the characteristics of high strength, high hardness and zero pollution, widely used in the shot peening industry.
Ceramic shot peening selects the high-quality imported zircon sand as main raw material, then fused in an electric arc furnace under high temperature over 2500 degrees, then made into different size according to AMS standard.
Although Ceramic shot peening and ceramic beads blasting media have the same chemical structure, their different size distribution determines their different applications: Ceramic Shot Peening has narrow and concentrated particle size distribution,used for shot peening purpose; ceramic beads blasting media has wide size,which can match almost blasting machine,widely used in blasting purpose.
Main Technical Data
| Ceramic Shot Peening | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% | Vickers Hardness ≥700 HV Bulk Density≥2.3g/cm3 True Gravity: 3.85g/cm3 Process: Melting |
| Particle Size for Ceramic Shot Peening | |
| Z100: 100-150μm | Z150: 150-210μm |
| Z210: 210-300μm | Z300: 300-425μm |
| Z425:425-600μm | Z600: 600-850μm |
| Z850: 850-1180μm | ./ |
| Remark: Special specification can be customized. | |
Main Features of Ceramic Shot Peening
Ceramic sand has high strength and compact structure, with good wear resistance and impact resistance.
Ceramic beads has medium density compared with steel shot and glass shot. It can be used to shot-peening both the low-strength structural parts and high-strength structural parts, especially will achieve outstanding effect for for parts of aluminum alloy and titanium alloy.
Ceramic shot peening has high hardness and small deformation, which can not only improve the production efficiency,but also improve the final shot peening effect;
Ceramic shot peening has lower break-down rate,which will provide one clean working condition,also reduce the treatment cost of solid waste.
Ceramic shot peening has good chemical inertness,no contamination to the treatments.
Main Applications of Ceramic Shot Peening
Shot peening in the manufacture of key load-bearing components of aircraft, engines and aerospace to improve their fatigue life and surface strength.
