Ceramic Beads Shot Peening Of Mechanical Parts
Ceramic Beads Shot Peening Of Mechanical Parts are high quality zirconia-based blast medium. Ceramic Beads Shot Peening have long life time and high uniformity level on the surface of workpiece. Ceramic blasting beads are round and smooth, it does not have small sharp edges after smashing like other non-metallic abrasives.
PHYSICAL PROPERTIES:
| Specific Weight | 4.30g/cm3 |
| Mohs Hardness | 7.0 |
| Vickers/Rockwell hardness | 700HV/60HRC |
| Bulk density | 125um and above: 2.30g/cm3, 125um and below: 2.1-2.2g/cm3 |
TYPICAL CHEMICAL ANALISIS [%]
| Component | Typical value (%) | Conventional value (%) |
| ZrO2 | 63.80 | 60-70 |
| SiO2 | 26.82 | 28-33 |
| AL2O3 | 9.08 | Max 10 |
| Fe2O3 | 0.03 | Max 0.1 |
| TiO2 | 0.24 | Max 0.4% |
Model Specifications
| Model | Model Particle size range |
| B20 | 600-850 um |
| B30 | 425-600 um |
| B40 | 250-425 um |
| B60 | 125-250 um |

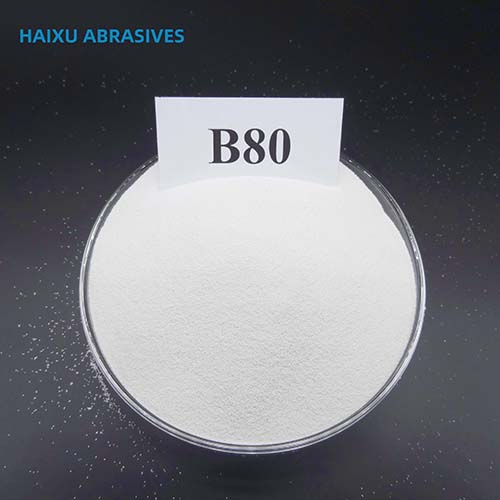

| B80 | 180-250 um |
| B100 | 125-180 um |
| B120 | 63-125 um |
| B125 | 0-125 um |
| B170 | 45-90 um |
| B205 | 0-63 um |
| B400 | 30-63 um |
| B500 | 10-30 um |
Application:
It ideally suits for blasting applications involving both manual and automated machinery, where consistency of finish is important. Ceramic beads are used for cleaning, satin finishing, deburring, uniforming of surfaces, also for shot peening of metal products. Suits for steel, stainless steel, ferrous metals and aluminium.
Advantages:
- Ceramic bead offers higher density and hardness than glass beads.
- Ceramic bead last 10-12 times longer that glass beads.
- Working mix of ceramic beads is a lot more stable and consistent, resulting in more consistent surface finishes.
- Dust levels generated from ceramic beads are considerably lower compared with glass beads.
- Significantly lower utilization costs for used abrasives.
